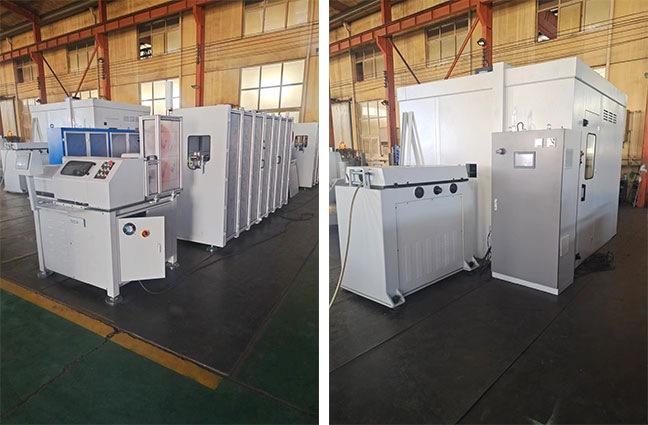

The high-speed 36 carriers rotary braider and 20 ply bobbin winder are ready to ship.
Technical parameters of 20 ply bobbin winder
| Description | Technical parameters | |
| 1 | Motor power | 5.5kw |
| 2 | Take-up speed | 7m/s |
| 3 | Take-up speed form | Constant linear velocity |
| 4 | Apex form of work | Pneumatic compression |
| 5 | Bobbin Recipe Quantity | 5 |
| 6 | Working pressure | 0.3-0.5mpa |
| 7 | Number of winding | （Max）20 |
| 8 | Flat calle method | Servo Flat Calle |
| 9 | Take-up control method | PLC+ man-machine interface digital control |
| 10 | Pay-off control form | Special tension motor + program control + tension sensor |
| 11 | Pay-off control structure | Single axis independent control |
| 12 | Form of tension control | Constant tension control (automatic) |
| 13 | Adapt to wire diameter | （Max）0.4mm |
| 14 | Power supply | 380V 50HZ |
| 15 | Machine Dimension | （L×W×H） |
| 5103*1160*1840 | ||
